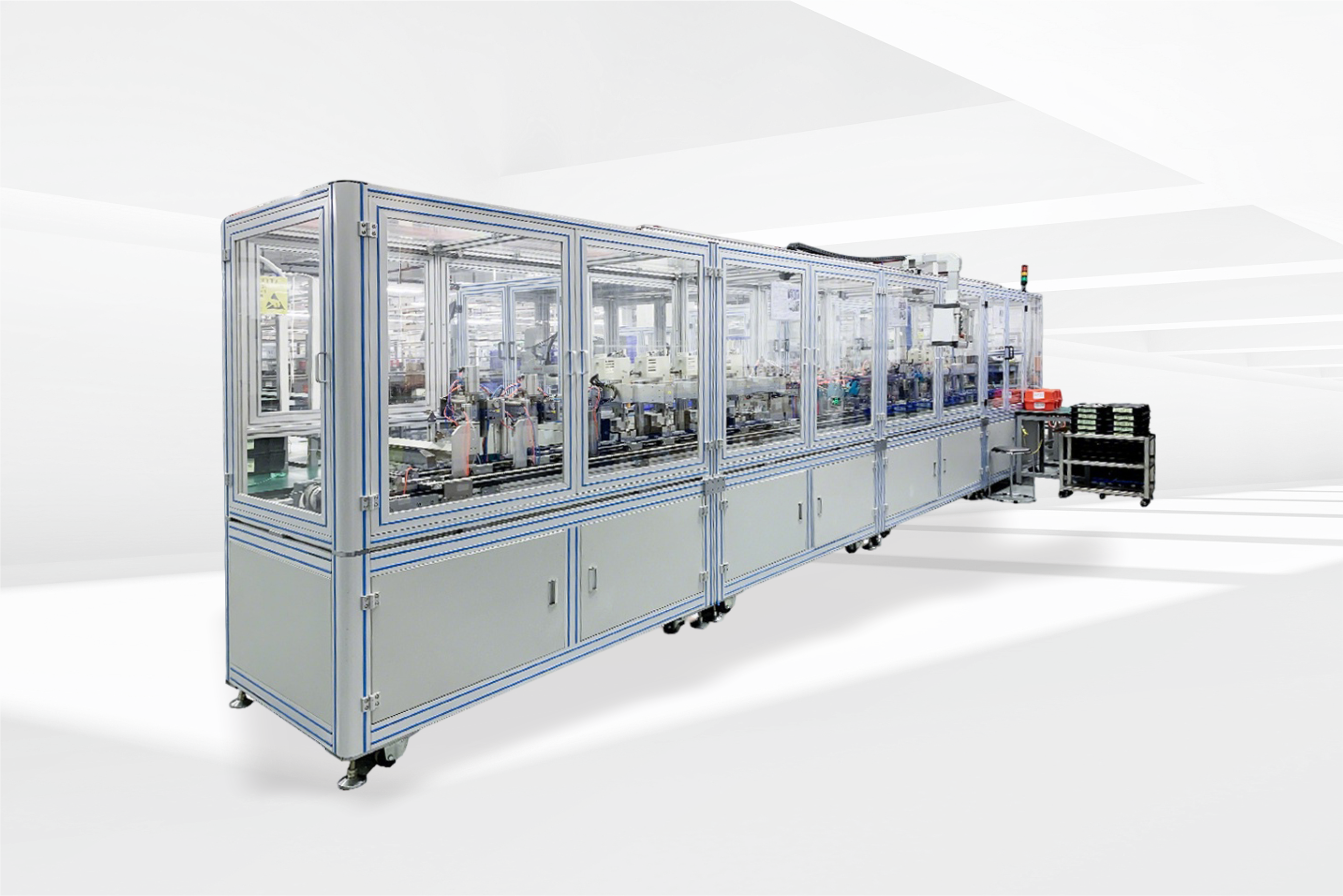

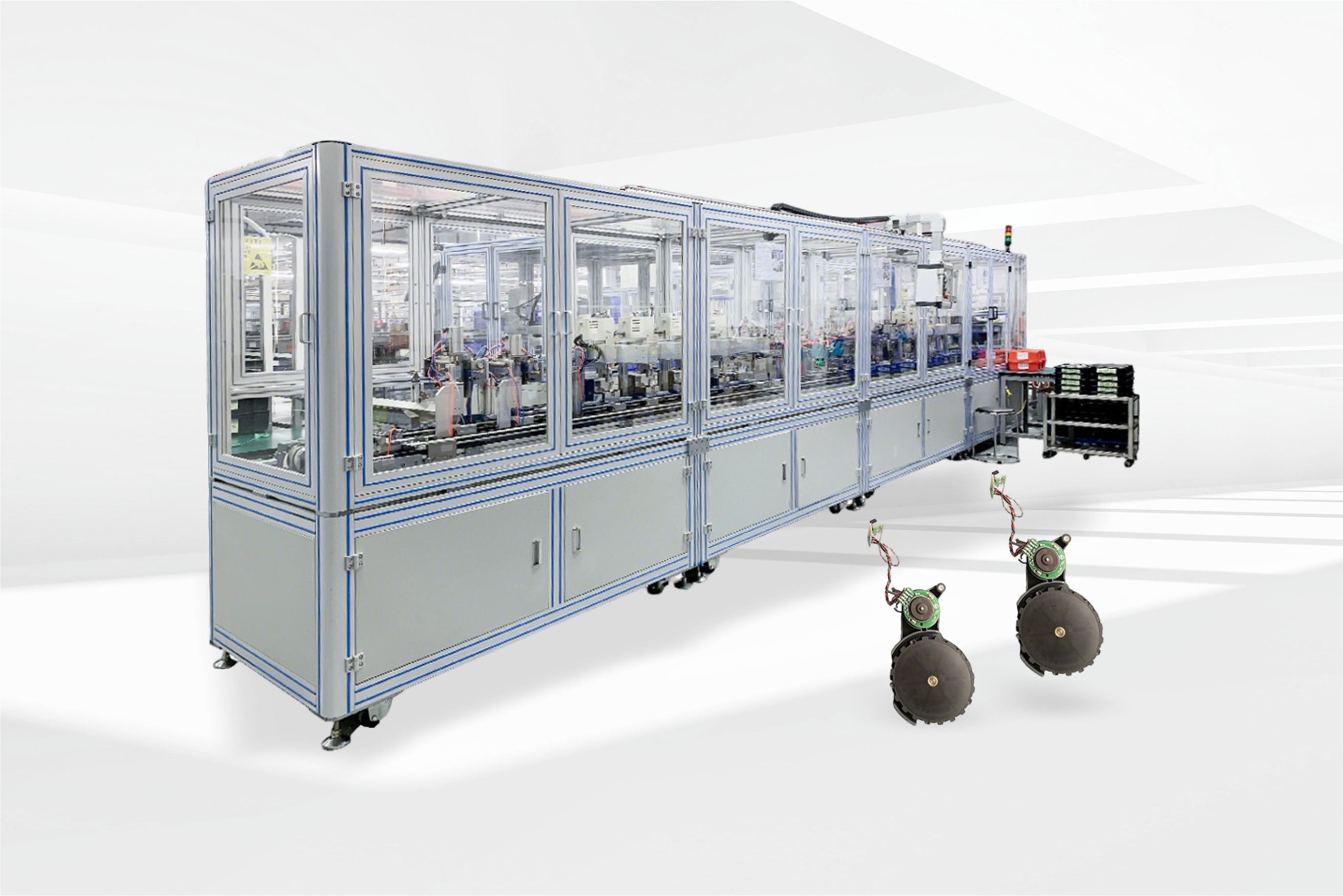

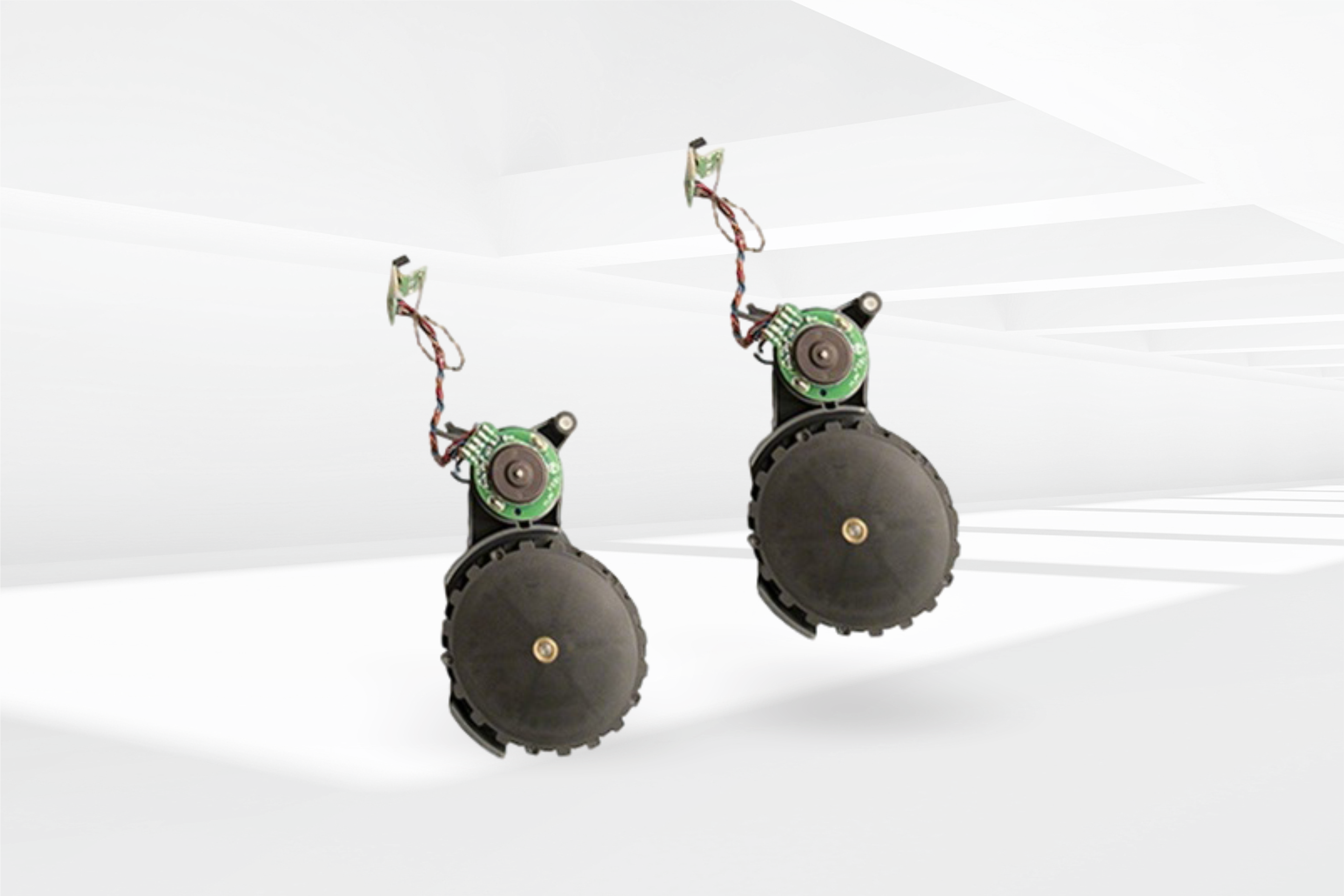

Wheel Sets of Floor-sweeping Robots Intelligent Equipment
Short Description:
This equipment is applicable to the automatic assembly of the wheel sets of floor-sweeping robots. It adopts a manual motor installation by workers and an automatic feeding system with a vibrating plate. It can complete processes such as the automatic assembly of the bottom shell, shafts, and gears, automatic screw locking, oil application, and inspection. Through the transmission fixtures for conveying, assembling, and gripping products, it realizes the functions of fully automatic feeding for assembly and discharging of finished products.
CORE TECHNOLOGY
Fault and safety alarm system
It has functions such as abnormal alarm and information indication guidance, incoming material detection direction, and material shortage reminder.
The precision vibrating plate automatically loads and unloads materials
It has a high degree of automation, realizing automatic loading of the vibrating plate and automatic unloading of finished products, greatly increasing work efficiency. Compared with manual material placement, it saves time and effort.
Touch – controlled human – machine interface
PPU robotic hand for automatic gripping
RODUCT PARAMETERS
Dimensions:9000mm * 3800mm * 2000mm
Productivity: 8 – 12PCS/MIN
Power:8KW
Air pressure / Voltage:0.4 MPa-0.6 MPa/220/380 V 50 HZ
